Desktop Environment

​

Overview

​

Why a Virtual Desktop?

​

Complete Isolation

• No Risk to Host: All actions happen inside the container
• Sandboxed Environment: Desktop can’t access your host system
• Easy Reset: Destroy and recreate in seconds
• Clean Workspace: Each restart provides a fresh environment

​

Consistency Everywhere

• Platform Independent: Same environment on Mac, Windows, or Linux
• Reproducible: Identical setup every time
• Version Control: Pin specific versions for stability
• No Dependencies: Everything included in the container

​

Built for Automation

• Predictable UI: Consistent element positioning
• Clean Environment: No popups or distractions
• Automation-Ready: Optimized for programmatic control
• Fast Startup: Desktop ready in seconds

​

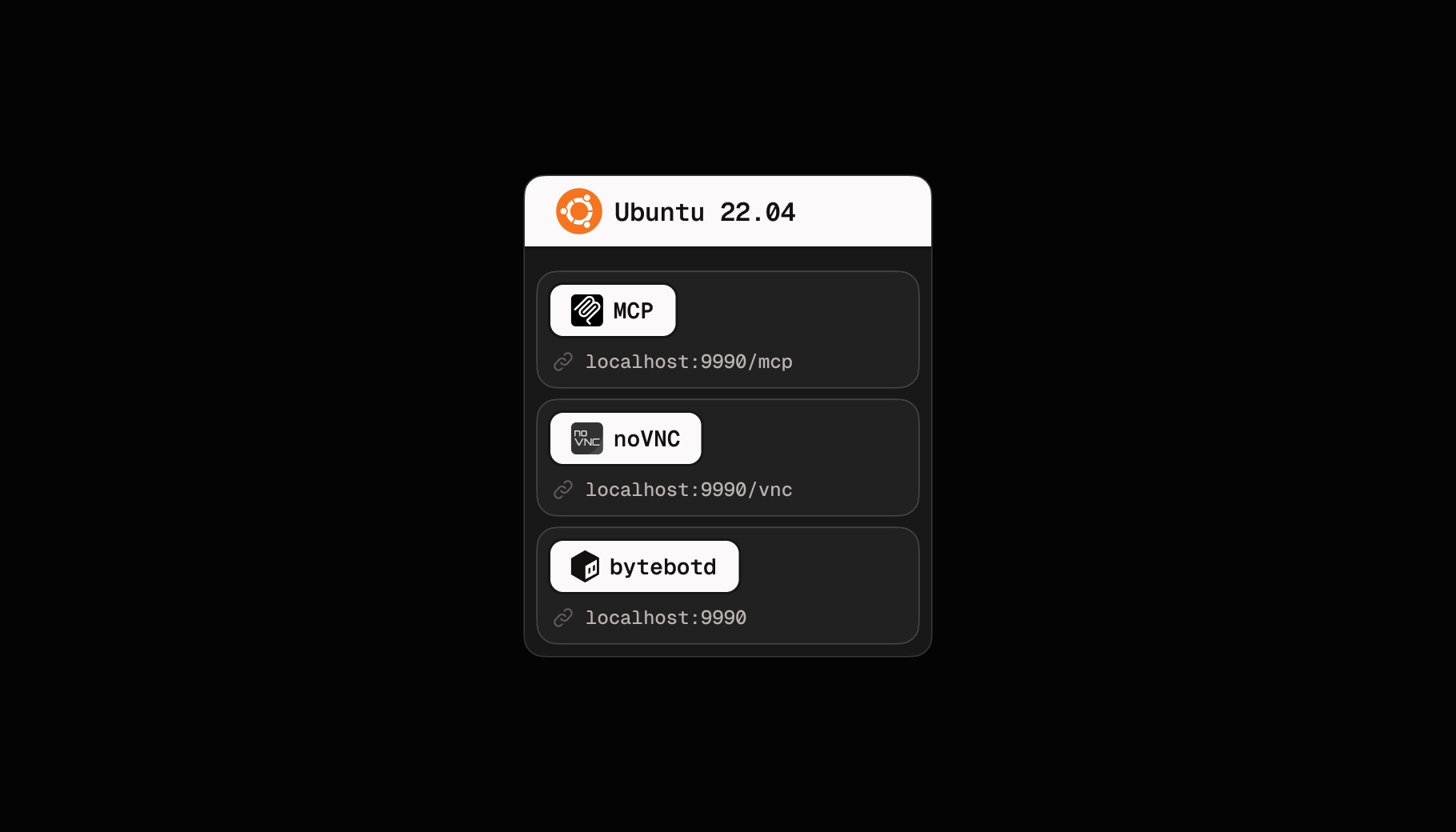

Technical Stack

​

Base System

• Ubuntu 22.04 LTS: Stable, well-supported Linux distribution
• XFCE4 Desktop: Lightweight, responsive desktop environment
• X11 Display Server: Standard Linux graphics system
• supervisord: Service management

​

Pre-installed Software

​

Core Services

1. bytebotd Daemon
   • Runs on port 9990
   • Handles all automation requests
   • Built on nutjs framework
   • Provides REST API
2. noVNC Web Client
   • Browser-based desktop access
   • No client installation needed
   • WebSocket proxy included
3. Supervisor
   • Process management
   • Service monitoring
   • Automatic restarts
   • Log management

​

Desktop Features

​

Display Configuration

# Resolution
1920x1080 @ 24-bit color

​

User Environment

• Username: user
• Home Directory: /home/user
• Sudo Access: Yes (passwordless)
• Desktop Session: Auto-login enabled

​

File System

/home/user/
├── Desktop/          # Desktop shortcuts
├── Documents/        # User documents
├── Downloads/        # Browser downloads
├── .config/          # Application configs
└── .local/           # User data

​

Accessing the Desktop

​

Web Browser (Recommended)

• No software installation required
• Works on any device with a browser
• Supports touch devices
• Clipboard sharing

​

MCP Control

{
  "mcpServers": {
    "bytebot": {
      "command": "npx",
      "args": [
        "mcp-remote",
        "http://127.0.0.1:9990/mcp",
        "--transport",
        "http-first"
      ]
    }
  }
}

​

Direct API Control

# Take a screenshot
curl -X POST http://localhost:9990/computer-use \
  -H "Content-Type: application/json" \
  -d '{"action": "screenshot"}'

# Move mouse
curl -X POST http://localhost:9990/computer-use \
  -H "Content-Type: application/json" \
  -d '{"action": "move_mouse", "coordinate": {"x": 500, "y": 300}}'

​

Customization

​

Adding Software

FROM ghcr.io/bytebot-ai/bytebot-desktop:edge

# Install additional packages
RUN apt-get update && apt-get install -y \
    slack-desktop \
    zoom \
    your-custom-app

# Copy configuration files
COPY configs/ /home/user/.config/

​

Performance Optimization

​

Resource Allocation

# Recommended settings
deploy:
  resources:
    limits:
      cpus: '2'
      memory: 4G
    reservations:
      cpus: '1'
      memory: 2G

​

Security Hardening

​

Essential Security Steps

1. Change Default Passwords
   # Set user password
   passwd bytebot

2. Limit Network Access
   # Whitelist specific domains
   environment:
     - ALLOWED_DOMAINS=company.com,trusted-site.com

   # Or restrict to local network only
   ports:
     - "10.0.0.0/8:9990:9990"


​

Troubleshooting

docker logs bytebot-desktop

docker stats bytebot-desktop

​

Best Practices

1. Regular Updates: Keep the base image updated for security patches
2. Persistent Storage: Mount volumes for important data
3. Backup Configurations: Save customizations outside the container
4. Monitor Resources: Track CPU/memory usage
5. Clean Temporary Files: Periodic cleanup for performance

​

Next Steps
